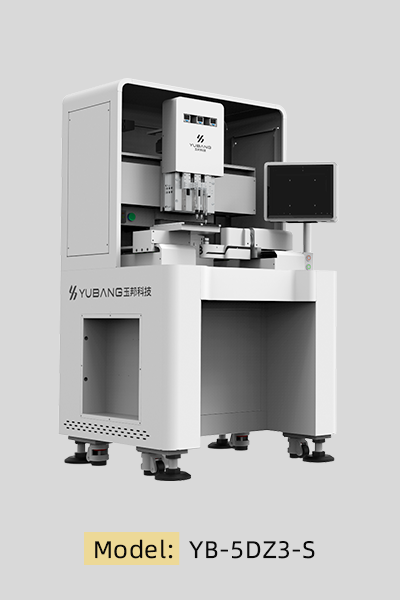

Jewelry Wax Setting Machine
Model: YB-5DZ3-S
Mini Wax Setting Machine is a compact and fully automatic solution for precision wax model stone setting. Designed to handle rings, necklaces, and earrings, it integrates advanced vision and CNC systems to set stones on flat, curved, and 3D wax models with ease. Despite its miniature size, it delivers impressive efficiency. The machine utilizes an electric drive mechanism for gentle and consistent force, accurately setting stones like zircon and moissanite (0.8-3.0mm) to protect your wax models. Its 5-axis linkage workbench ensures high-precision placement, achieving an accuracy of up to 0.01mm without deviation over continuous operation. This mini machine is your ideal partner for mastering complex setting techniques on various mold shapes, significantly boosting productivity and yield in a small footprint.
| Equipment Name | Jewelry Wax Setting Machine |
|---|---|
| Equipment Model | YB-5DZ3-S |
| Worktable Structure | Five-axis CNC work table |
| Running speed | 9000-12000 diamonds per hour |
| Number of suction drill bits | 3 suction nozzles |
| Drill disc fixing method | movable spring-loaded top wire on the upper side of the platform |
| Spot drilling accuracy | +0.02mm |
| Control system | Industrial Grade 5-axis Motion Controller |
| Main operating system | Yubang Technology self-developed system |
| Drive system | High-end servo |
| Transmission mode | High Precision Screw Guide |
| X/Y/Z/A/C effective stroke | 285*95*100mm/+180° -30° /+360° |
| Working power supply | AC220V/50Hz |
| Rated power | 1.3kw |
| Working air pressure | 90psi (0.6Mpa) |
| Equipment appearance size | Length780mm*Width730mm*Height1400mm |
| Equipment weight | About 140KG |
1. High Precision Setting
Accurate Placement: CNC-controlled micro-positioning ensures precise stone alignment on wax molds, reducing human error and increasing production consistency.
2. Stable & Durable Build
Quality Materials: Rigid metal frame and industrial-grade components deliver long-term stability, low vibration, and reliable performance for daily jewelry production.
3. Easy Operation
User-Friendly Interface: Simple touch-screen controls allow quick parameter adjustment, making it easy for beginners and efficient for skilled operators.
4. Compact & Space-Saving
Mini Design: Small footprint machine fits easily into jewelry workshops, saving space while providing professional-level stone-setting functions.
5. Efficient Production
Fast Setting Performance: High-speed electric drive system boosts productivity, enabling consistent setting on rings, pendants, earrings, and various wax patterns.
Warranty Service
We provide a 1-year warranty along with free tutorials. We guarantee you will master the skills with our comprehensive guidance.
All products manufactured or supplied by yubang.tech are provided a specific period of warranty based on date of purchase, unless otherwise stated. Please send your order number to us to facilitate providing you with after-sales service.
Description:
Guide of YUBANG Automatic Mini Wax Setting Machine
Comprising
Key Specifications
Technology and Software
How Does Yubang Automatic jewelry Stone Setting Machine Work
1.Comprising
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
2.Mini Wax Setting Machine Key Specifications
Micro-Compact Design:
Its ultra-miniature body saves valuable workspace and is easy to transport, offering unparalleled flexibility for any shop size.
5-Axis Versatility:
Equipped with a 5-axis linkage workbench, it expertly handles flat, curved, and 3D wax models, accommodating over 90% of market styles.
Intelligent Electric Drive:
Employs an electric drive principle that ensures consistent, gentle setting force, protecting wax models and stones while replicating the quality of hand-setting.
Multi-Stone Efficiency:
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
Unwavering Precision:
Built with a high-end CNC system and servo drives, it maintains stone-setting accuracy within 0.01mm, ensuring flawless and standardized results batch after batch.
3.Technology and Software
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
4.How Does Yubang Automatic jewelry Stone Setting Machine Work
Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
5.Why Trust Your Tools?
YUBANG Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes (0.8-3.0mm), streamlining the production process.
▶
FAQ:
Q1.How technology and software?
A1.Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes
Q2.How technology and software?
A2.Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes
Q3.How technology and software?
A3.Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes
Q4.How technology and software?
A4.Supports simultaneous setting of zircon, moissanite, and crystals in various colors and sizes
